Water Purification Technology
Reverse Osmosis System
High recovery, low operating cost, consistent water quality
Engineered for pharmaceutical and industrial water treatment requirements
Product Overview

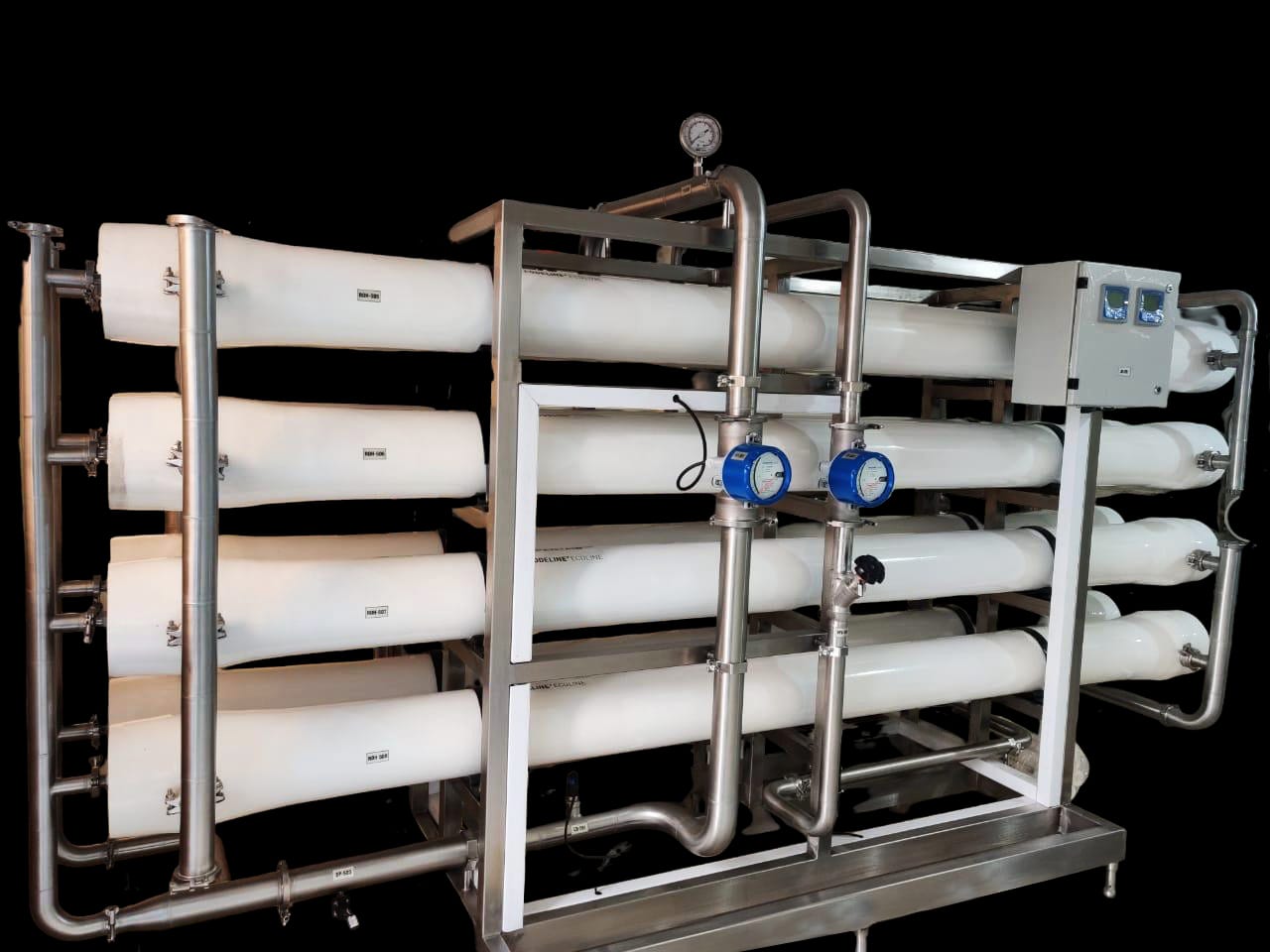

GM-PRO Reverse Osmosis Systems from GM Water are engineered to deliver exceptional reduction of ionic impurities, ensuring the desired product water quality even with high TDS feed water. Designed for consistent performance and long-term reliability, GM-PRO systems meet the stringent demands of pharmaceutical and industrial applications.
Backed by deep process expertise, the GM Water engineering team has established optimum RO recoveries based on the specific ionic composition of raw water, ensuring maximum efficiency, superior performance, and reduced operating costs.
The entire system is mounted on a single, compact skid, making it operator-friendly, easy to install, and simple to maintain. Robust construction and intelligent design ensure high system uptime and dependable performance.
Key Features
Compact Skid-Mounted Design
Available in manual, semi-automatic, and fully automatic configurations for easy installation and operation.
Robust Design Engineering
Suitable for varied water sources, ensuring consistent product quality and output under diverse conditions.
Softener-Free Option
Capability to eliminate the need for a softener prior to the RO system (application dependent).
High System Recovery
Optimized recovery rates resulting in reduced operating cost and lower OPEX.
Hot Water & Chemical Sanitizable
Versions available for enhanced hygiene and compliance with pharmaceutical requirements.
21 CFR Part 11 Compliant
Optional control system available for pharmaceutical-grade applications with data integrity.
System Configurations
Choose the automation level that fits your requirements
Manual
Basic operation with manual controls for simple applications
- Manual valve operation
- Pressure gauges
- Basic instrumentation
Semi-Automatic
Partial automation for improved operational consistency
- Auto flush cycles
- Level-based operation
- Basic alarms
Fully Automatic
Complete automation for pharmaceutical and critical applications
- PLC-HMI control
- Auto sanitization
- 21 CFR Part 11 option
- Data logging
System in Action
Watch our PW generation system in operation
PW Generation System (PWG-3000)
Complete demonstration of our 3000 LPH PW generation system in operation
Technical Specifications
| Technology | Thin Film Composite (TFC) Reverse Osmosis |
| Capacity Range | 250 LPH to 50,000 LPH |
| Salt Rejection | > 98% |
| Recovery Rate | 50-75% (feed water dependent) |
| Operating Pressure | 10-15 kg/cm² |
| Configuration | Manual / Semi-Auto / Fully Automatic |
| Construction | SS 304 / SS 316L options |
| Sanitization | Hot water and chemical sanitizable |
| Automation | PLC + HMI, 21 CFR Part 11 optional |
| Mounting | Compact single skid design |
For Custom Specifications do get in touch with us at support@gmwater.in
Process Flow
Reverse osmosis membrane separation process
Feed Water
Pre-treated water inlet
High Pressure Pump
Pressurization for membrane
RO Membrane Array
Ion and impurity removal
Permeate
Purified product water
Concentrate
Reject water discharge
Key Benefits
- Low Operating Cost
High recovery rates and optimized design minimize water wastage and energy consumption
- Consistent Quality
Exceptional reduction of ionic impurities ensuring desired product water quality
- High Reliability
Robust construction and intelligent design ensure high system uptime
- Easy Maintenance
Operator-friendly design with easy access for maintenance and servicing
Ready to Discuss Your RO System Requirements?
High recovery, low operating cost, and consistent water quality for your critical applications
