Pretreatment Solutions

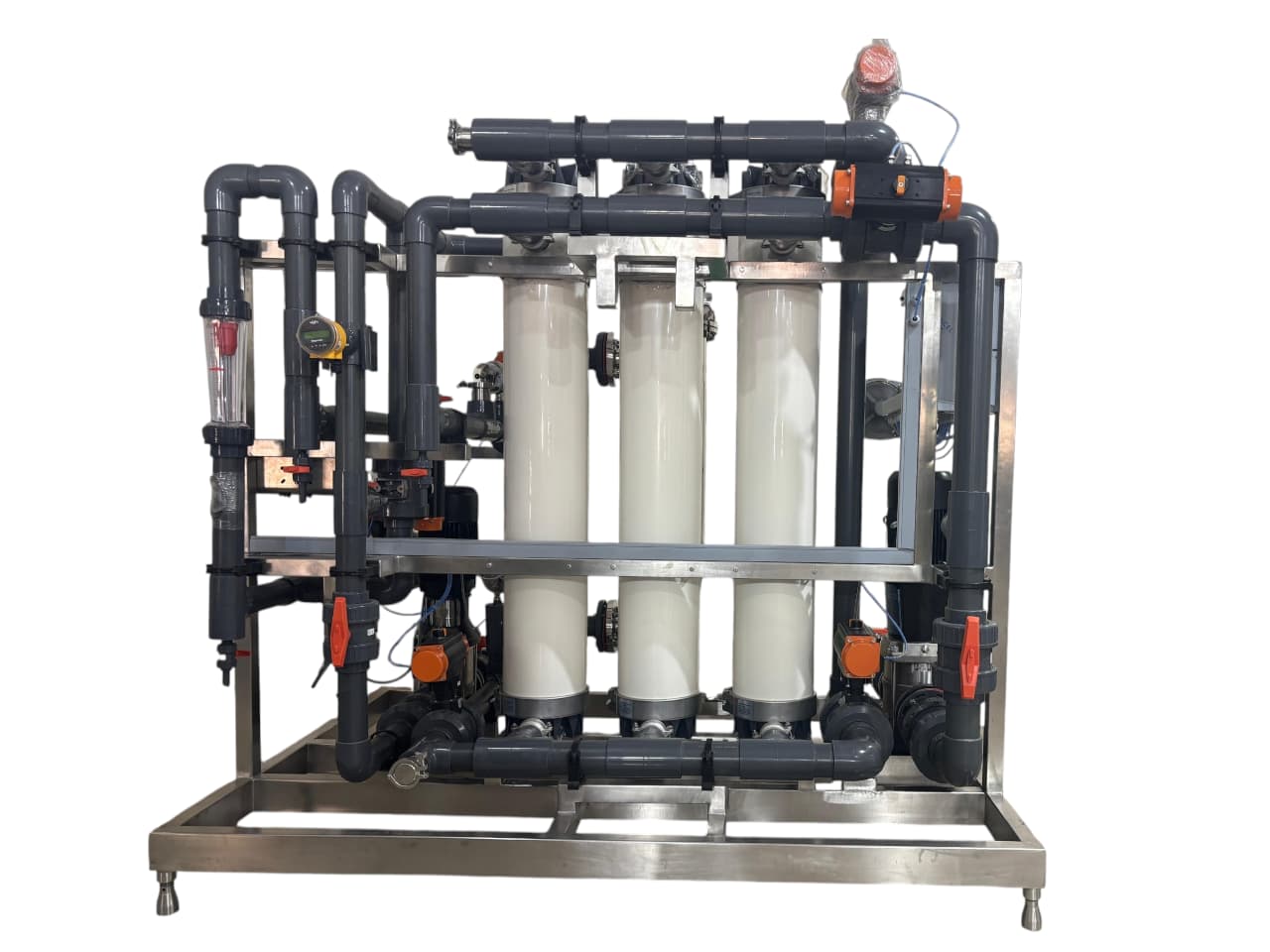

Ultrafiltration Systems GM-UF
Advanced membrane filtration with guaranteed SDI < 3 output
Product Overview
Our Ultrafiltration System (GM-UF) utilizes advanced membrane-based filtration technology driven by hydrostatic pressure to effectively remove suspended solids, turbidity, bacteria, and high molecular weight solutes from feed water.
Featuring patented Multibore membrane technology, the GM-UF system delivers consistent, high-quality output with guaranteed SDI < 3, making it the ideal pre-treatment solution for reverse osmosis systems.
With compact skid-mounted design, automatic backwash cycles, and chemical sanitization capability, our UF systems offer plug-and-play installation with minimal maintenance requirements.
Key Features
- Compact skid-mounted design
- SDI < 3 guaranteed output
- Chemical sanitization capability
- uPVC or SS pipework options
- High flux rates
- Low maintenance operation
- Automatic backwash cycles
- Plug-and-play installation
- Patented Multibore membrane technology
- Energy efficient operation
System in Action
Continuous soft water supply with zero downtime operation
Ultrafiltration Systems GM-UF
Advanced membrane filtration with guaranteed SDI < 3 output
Technical Specifications
| Technology | Hydrostatic pressure membrane filtration |
| Membrane Type | Multibore hollow fiber |
| Capacity Range | 500 LPH to 20,000 LPH |
| Filtration Rating | 0.01 - 0.1 micron |
| SDI Output | < 3 (guaranteed) |
| Turbidity Removal | > 99% |
| Bacteria Removal | > 99.9% |
| Construction | uPVC or SS316L |
| Backwash | Automatic (air + water) |
| Sanitization | Chemical (chlorine/peroxide) |
For Custom Specifications do get in touch with us at support@gmwater.in
Process Flow
Simple and efficient ultrafiltration process
Feed Water
Raw water inlet
UF Filtration
Membrane separation
Permeate
Clean filtered water
Backwash
Automatic cleaning
Key Benefits
- Superior Filtration
Removes suspended solids, turbidity, bacteria, and high molecular weight solutes effectively
- RO Protection
Guarantees SDI < 3 protecting expensive RO membranes from fouling and extending life
- Low Operating Cost
Energy efficient with automatic cleaning cycles reducing chemical and labor costs
- Minimal Maintenance
Robust membrane design with automatic backwash requires minimal operator intervention
Protect Your RO Investment with UF Pre-treatment
Guaranteed SDI < 3 output for optimal RO performance and extended membrane life
